Parts Counter

Specification

  Small size
Product dimensions 131mm(W)×254.5mm(L)×184mm(H)
Hopper capacity Approximately 0.9 liters
Example :
Approximately 290 bolts of M6 × 15 mm with washer
Take-out method Pan type :
Take-out check sensor equipped
Pan height :
89 mm (from the bottom surface)
Applicable workpiece
(Applicability has been checked)
M4 to M6 bolts (with washer, flange)
Nuts, washers, etc.
*Workpieces other than those listed above may be used with this device.
Please provide us with actual workpieces that you are considering to use.
Processing capacity Within 90 seconds/15 pieces
Actual example :
5 pieces/20 to 30 seconds (M6 × 20)
*Depending on workpiece conditions
Material Casing : Stainless steel
Rotation plate : Industrial resin
General specifications Power supply : DC 24V / 1A
*AC-DC Adapter AC 100-240V 50/60Hz 0.6A
Feeding quantity of pieces Maximum 15 pieces
  Medium size
Product dimensions 155mm(W)×305mm(L)×256mm(H)
Hopper capacity Approximately 2.5 liters
Example :
Approximately 800 bolts of M6 × 15 mm with washer
Take-out method Pan type :
Take-out check sensor equipped
Pan height:
214 mm (from the bottom surface)
Applicable workpiece
(Applicability has been checked)
M4 to M8 bolts (with washer, flange)
Nuts, washers, etc.
Workpieces other than those listed above may be used with this device.
Please provide us with actual workpieces that you are considering to use.
Processing capacity Within 90 seconds/15 pieces
Actual example :
5 pieces/20 to 30 seconds (M6 × 30)
*Depending on workpiece conditions
Material Casing : Stainless steel
Rotation plate : Industrial resin
General specifications Power supply : DC 24V / 1A
*AC-DC Adapter AC 100-240V 50/60Hz 0.6A
Feeding quantity of pieces Maximum 15 pieces
  Large size
Product dimensions 204mm(W)×approx.461mm(L)×334mm(H)
Hopper capacity Approximately 4.5 liters
Take-out method Pan type :
Take-out check sensor equipped
Pan height:
167 mm (from the bottom surface)
Applicable workpiece
(Applicability has been checked)
M6 to M12 bolts (with flange etc.), Nuts
Up to about 50 mm in length
*Workpieces other than those listed above may be used with this device.
Please provide us with actual workpieces that you are considering to use.
Processing capacity Within 90 seconds/15 pieces
Actual example :
5 pieces/20 to 30 seconds (M8 × 30)
*Depending on workpiece conditions
Material Casing : Stainless steel
Rotation plate : Industrial resin
General specifications Power supply :DC 24 V / 1A
*AC-DC Adapter AC 100-240V 50/60Hz 0.6A
Feeding quantity of pieces Maximum 15 pieces

Specification download

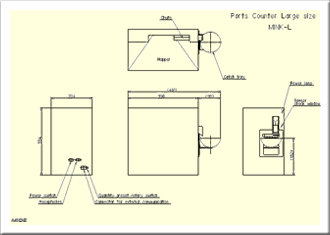

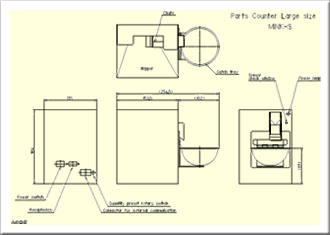

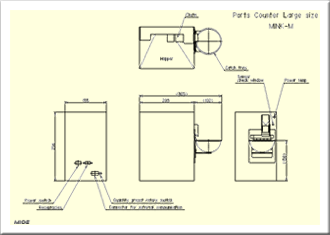

External view
