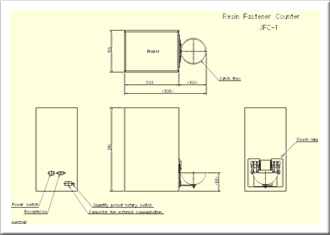

| Product dimensions | 155mm(W)×approx.306mm(L)×310mm(H) |
|---|---|
| Hopper capacity | Approximately 3 liters |
| Take-out method | Pan type : Take-out check sensor equipped Pan height: 69 mm (from the bottom surface) |
| Applicable workpiece (Applicability has been checked) |
Resin fasteners (such as grommets, plugs, clips) *Workpieces other than those listed above may be used with this device. Please provide us with actual workpieces that you are considering to use. |
| Processing capacity | Within 90 seconds/15 pieces Actual example : 5 pieces/20 to 30 seconds *Depending on workpiece conditions |
| Material | Casing : Stainless steel Rotation plate : Industrial resin |
| General specifications | Power supply : DC 24V / 1A *AC-DC Adapter AC 100-240V 50/60Hz 0.6A |
| Feeding quantity of pieces | Maximum 15 pieces |
